4A-GE Dyno Graphs - Aftermarket ECU

These are a collection of our Dyno graphs to date. All are from Torque Performance.
This collection are of 4AGE powered Toyotas, running an aftermarket ECU of some sort.

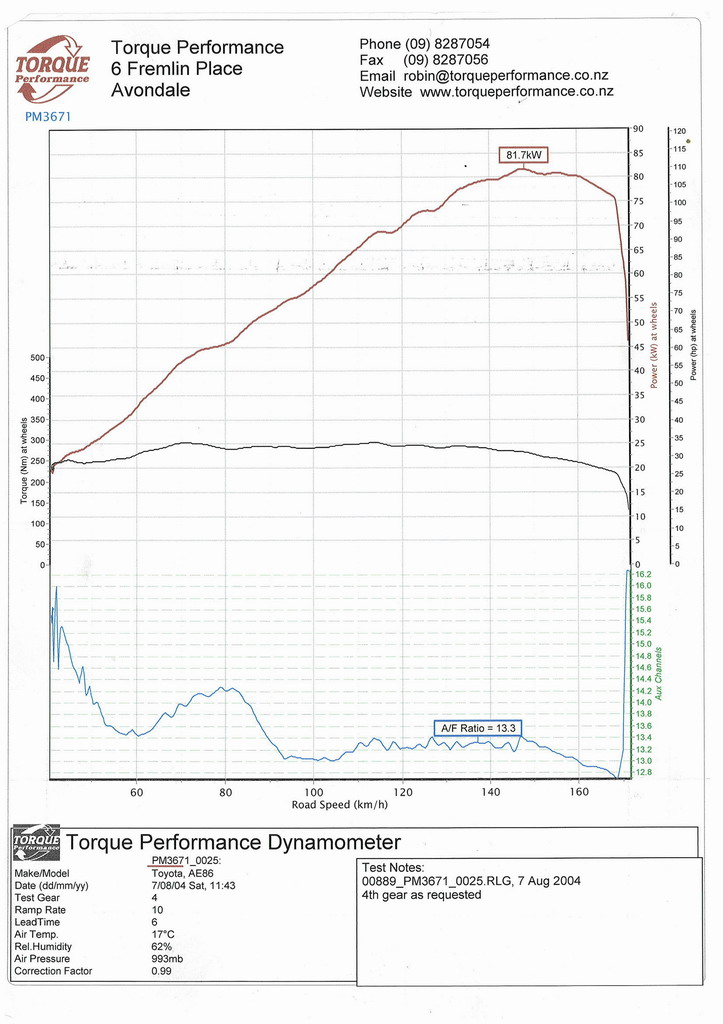

Matt's redtop tvis AE86, running EMX+Bluetop computers as at August 04.

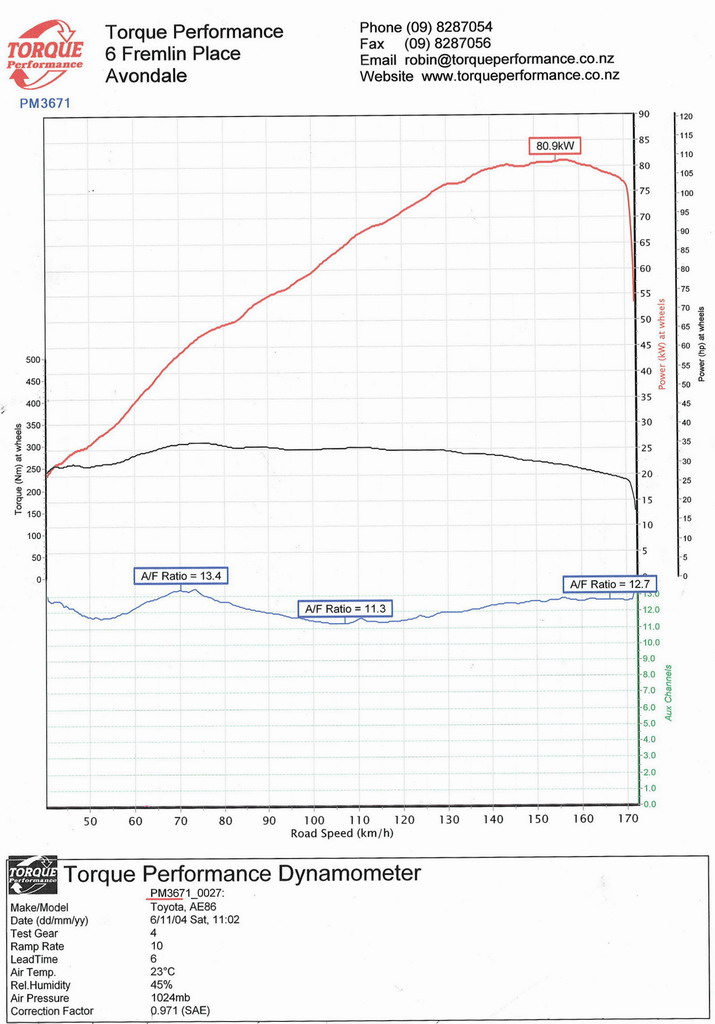

Matt's redtop tvis AE86 again, now running Megasquirt ECU + Bluetop computers as at November 04.

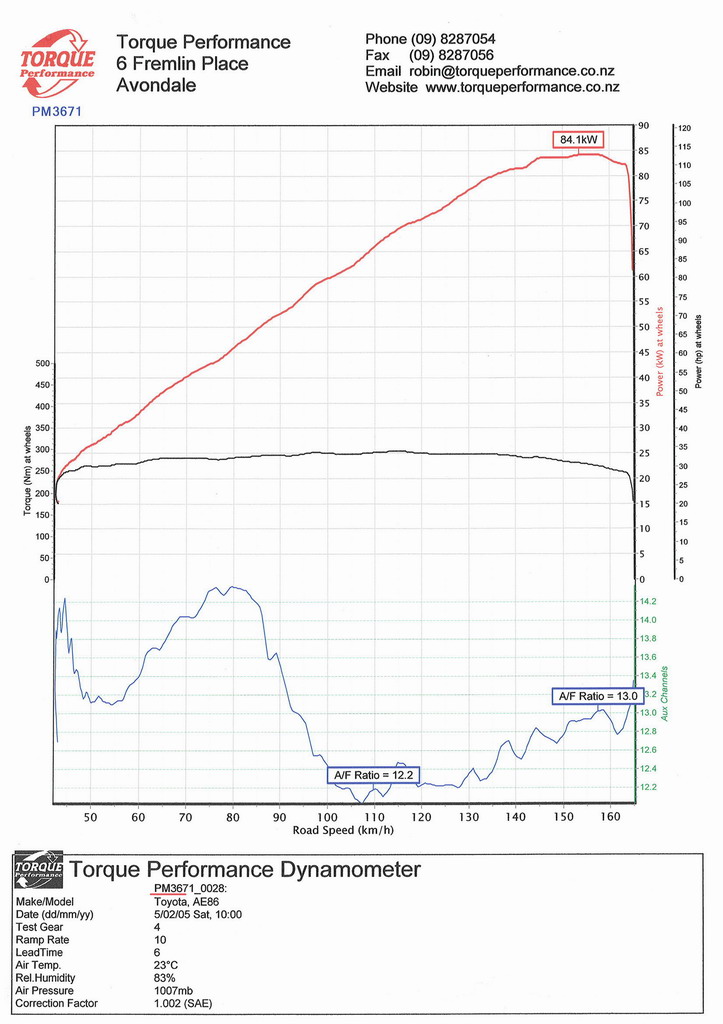

Matt's redtop tvis AE86 again, now running Silvertop 20V 4AGE Quad throttle bodies (ITB) as at February 05. Note: Jagged AFR is due to noise on tacho signal. Lean down low is due to lack of throttle enrichment.
Lastly, this motor has been steadily loosing power at the rate of a kW per month or so, theoretical gain of quads on this motor is 6-8kW at the wheels.

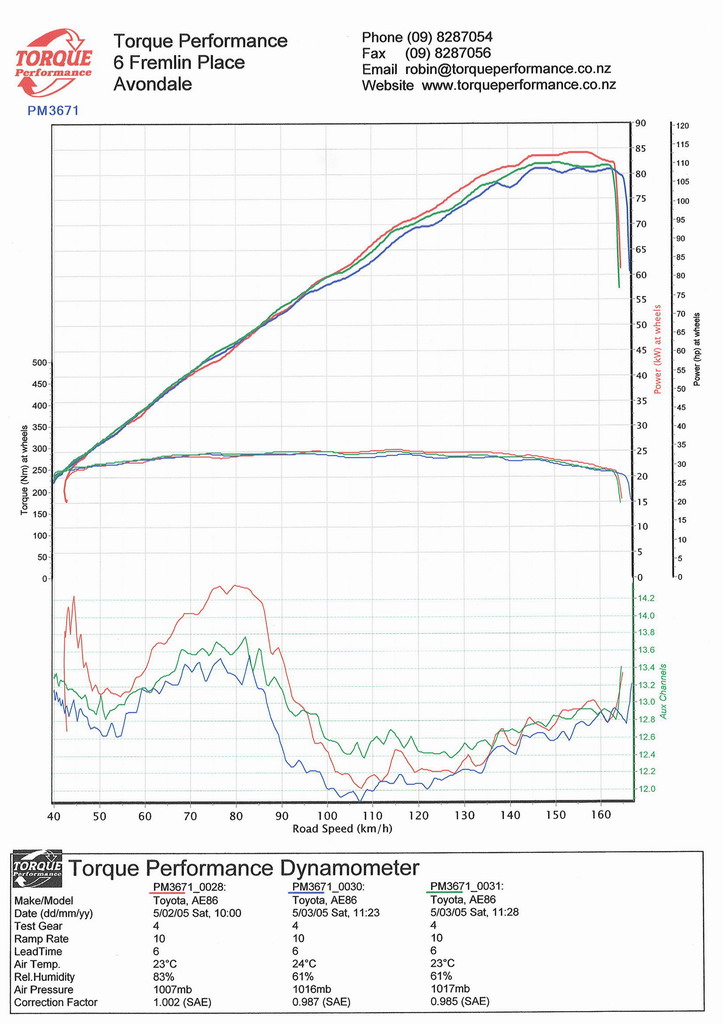

Matt's redtop tvis AE86, running Silvertop 20V 4AGE Quad throttle bodies (ITB) and standard rwd exhaust manifold as at March 05. New Run in Green.
