1JZ-GTE Dyno Graphs - Factory ECU

These are a collection of our Dyno graphs to date. All are from Torque Performance.
This collection are of 1JZGTE powered Toyotas, running the factory ECU.

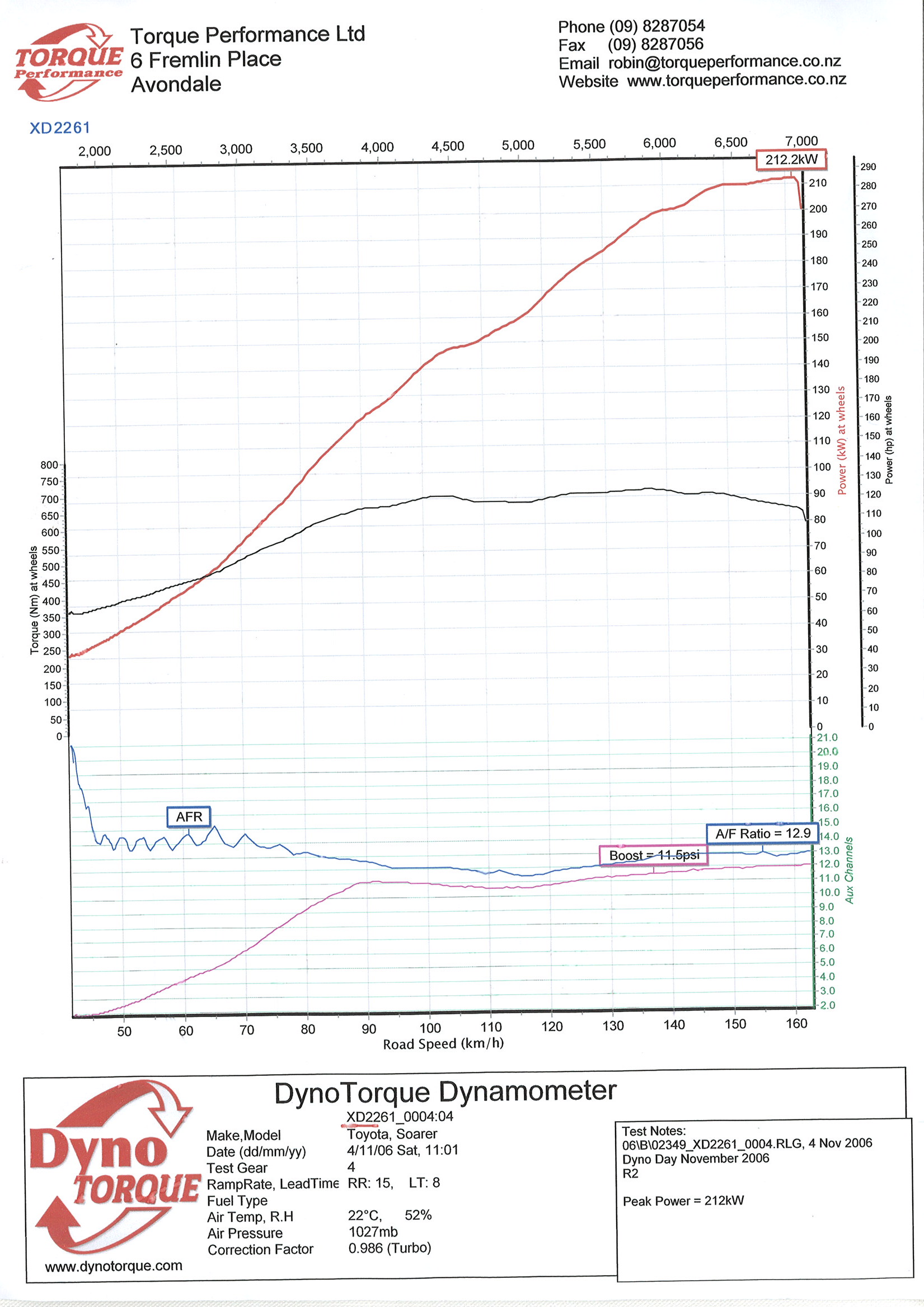

Matts JZX30 Soarer, taken in Nov 06.

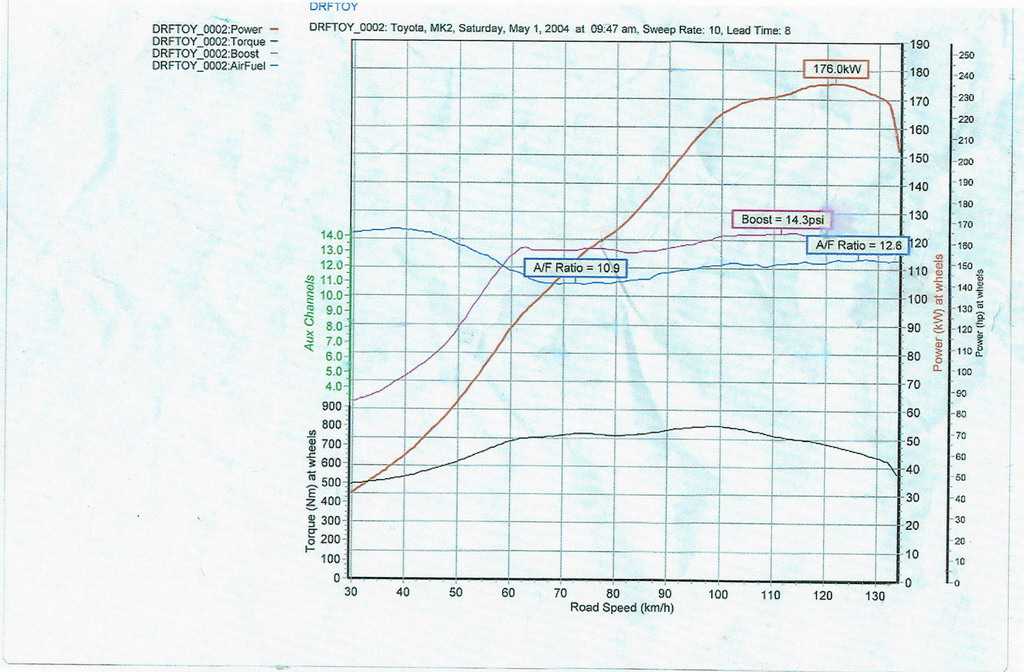

Marks JZX81 Mark 2, running stock turbos, taken in May 04.

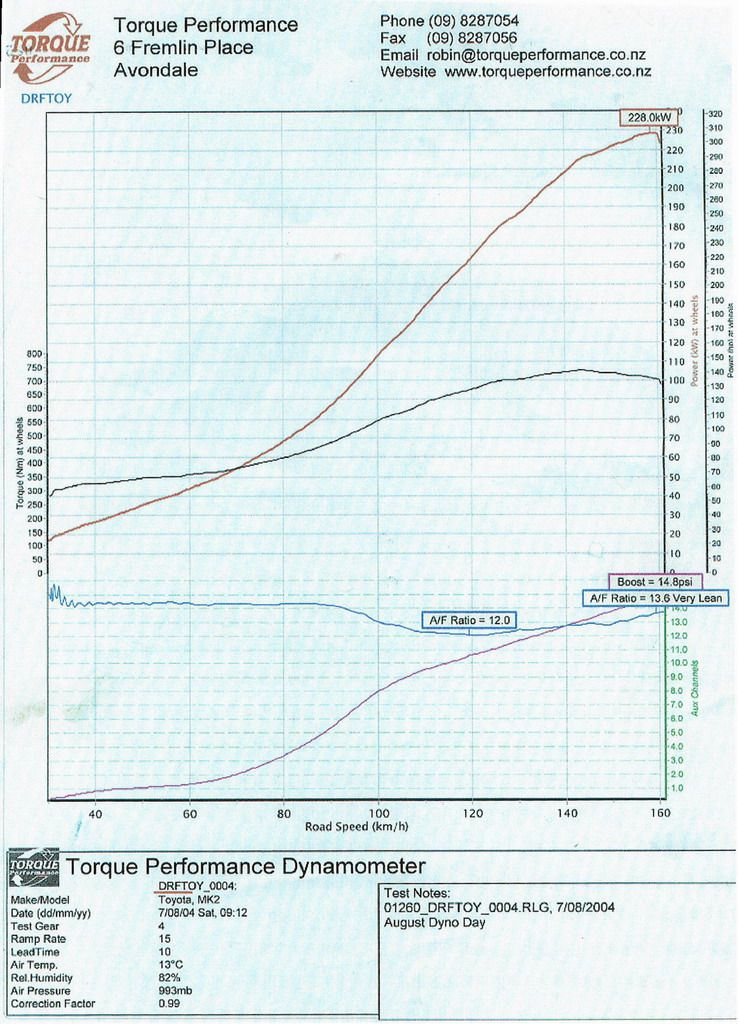

Marks JZX81 Mark 2, now running a big single turbo, taken in August 04.

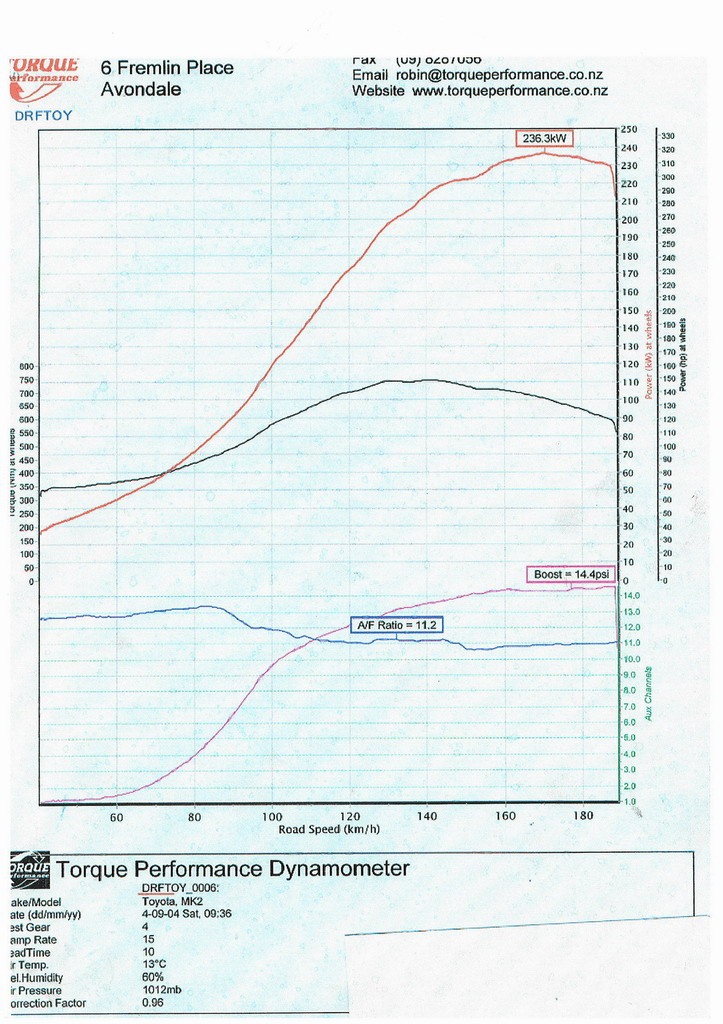

Marks JZX81 Mark 2, running the big turbo from before but a revised fuel setup with a surge and two big Bosch pumps, taken in September 04.
